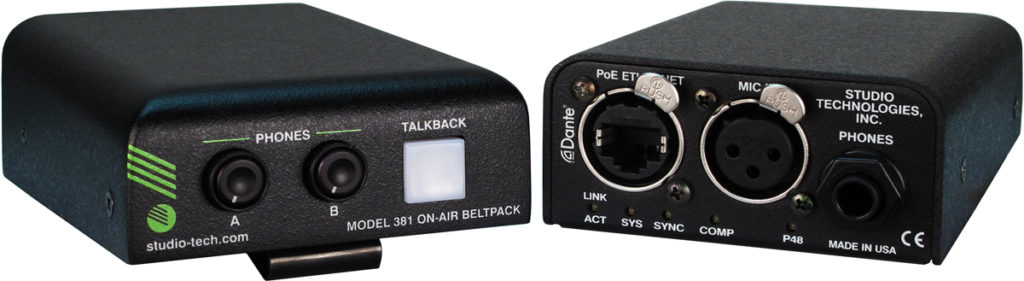

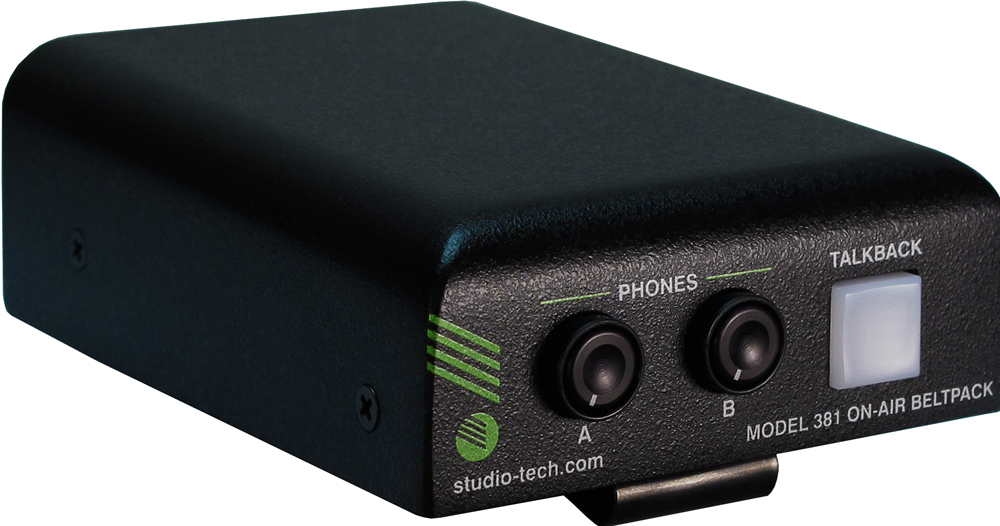

Model 381
Dante On-Airベルトパック
Model381オンエアーベルトパックは、オーディオリソースの組み合わせを提供して、完全な放送「スタンドアップ」オンエアポジションをサポートします。 DanteRオーディオ・オーバー・イーサネット技術を使用しており、ユニットはコンパクト、ポータブルパッケージで、メインとトークバック出力チャネル、タレントキュー（IFB）入力、およびサイドトーン、ならびに ユーザーコントロールを提供します。Model381は、Dante Domain Manager ＝iDDM）、AES67に準拠しているため、リモートプロダクション等のシステムに直接統合することができます。
主な特長
- Dante audio-over-Ethernet テクノロジー
- 1つのマイク入力と1つのトークバック出力を搭載
- 柔軟性の高い2チャンネルのヘッドフォントリム(L+R等)
- STcontrollerを使って各種設定が可能
- 高音質設計
- サイドトーン機能搭載
- PoEによる電源供給
技術仕様
Power Source
- Power-over-Ethernet (PoE): class 1 (very low power, ≤6.49 watts)
Network Audio Technology
- Type: Dante audio-over-Ethernet
- AES67-2013 Support: yes
- Dante Domain Manager (DDM) Support: yes
- Bit Depth: up to 24
- Sample Rate: 44.1,48, 88.2, and 96 kHz
- Number of Transmitter (Output) Channels: 2
- Description of Transmitter Channels: main (pre- or post-compressor, selectable), talkback (post-compressor)
- Number of Receiver (Input) Channels: 2
- Description of Receiver Channels: headphone channel 1 and headphone channel 2
- Dante Audio Flows: 4; 2 transmitter, 2 receiver
Network Interface
- Type: 100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
- Data Rate: 100 Mb/s (10 Mb/s and 10000 Mb/s "GigE" Ethernet not supported)
Microphone Input
- Compatibility: dynamic or phantom-powered microphones
- Type: balanced, capacitive coupled
- Impedance: 2.8 k ohms, nominal
- Gain: 36, 42, 48, 54, and 60 dB, selectable
- Frequency Response: 30 Hz to 20 kHz, -3 dB at 30 Hz, -0.6 dB at 20 kHz
- Distortion (THD+N): <0.020%, 1 kHz, 36 dB gain, -32 dBu input level
- Dynamic Range: 96 dB, A-weighted
- Phantom Power: P48 per IEC 61938 standard, on/off selectable with status LED
Compressor
- Application: always used for Dante talkback audio output channel, can be used for Dante main output channel
- Threshold: 1 dB above nominal level (-19 dBFS)
- Slope: 2:1
- Status LED: compressor active
Headphone Output
- Type: 2-channel
- Compatibility: intended for connection to stereo (dual-channel) or mono (single-channel) headphones, headsets or earpieces with nominal
- impedance of 50 ohms or greater
- Maximum Output Voltage: 3.1 Vrms, 1 kHz, 150-ohm load
- Frequency Response: 20 Hz to 20 kHz, +0/-1 dB
- Distortion (THD+N): 0.001%, +10 dBu output, 150-ohm load
- Dynamic Range: >102 dB

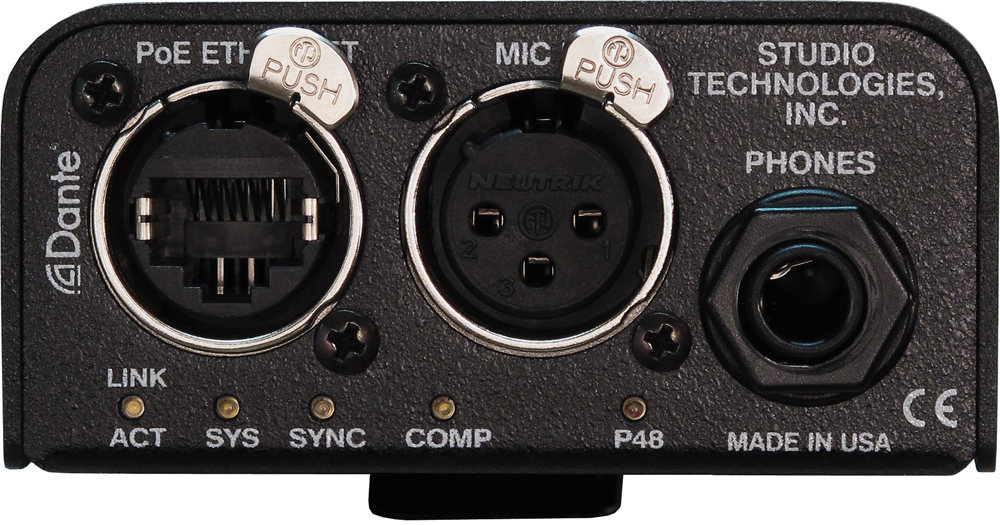

Connectors
- Microphone Input: 3-pin female XLR
- Headphone Output: ¼-inch 3-conductor jack
- Ethernet: Neutrik etherCON RJ45
- USB: type A receptacle (located inside Model 381's enclosure and used only for updating firmware)
Configuration
- uses Studio Technologies' STcontroller personal computer application, version 1.08.00 and later
Environmental
- Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
- Storage Temperature: -40 to 70 degrees C (-40 to 158 degrees F)
- Humidity: 0 to 95%, non-condensing
- Altitude: not characterized
Dimensions (Overall)
- 3.1 inches wide (7.9 cm)
- 1.5 inches high (4.0 cm) w/out belt clip; 1.8 inches (4.6 cm) with belt clip
- 4.9 inches deep (12.5 cm)
Deployment
- intended for portable applications; contains integral belt clip
Weight
- 0.5 pounds (0.23 kg)
