• Dante audio-over-Ethernet テクノロジー
• ヘッドホンおよびバランスライン出力
• 高音質設計
• PoEにより電源供給
• レベルメーター搭載
• コンパクトな筐体

Network Audio Technology

• Type: Dante audio-over-Ethernet
• Bit Depth: up to 24
• Sample Rates: 44.1, 48, 88.2, and 96 kHz
• Number of Receiver (Input) Channels: 2
• Dante Audio Flows: 2 receiver
• Digital to Analog Equivalence: at unity gain a Dante digital input of -20 dBFS results in an analog output of +4 dBu

Network Interface

• Type: twisted-pair Ethernet with Power-over-Ethernet (PoE)
• Data Rate: 100 Mb/s (10 Mb/s Ethernet not supported)

Power

• Power-over-Ethernet (PoE) per IEEE 802.3af class 1 (very low power, ≤3.84 watts)

General Audio Parameters

• Frequency Response: 20 Hz to 20 kHz, ±0.5 dB, Dante to line output
• Distortion (THD+N): 0.01%, measured at 1 kHz, +4 dBu, Dante to line output
• Dynamic Range: >100 dB, A-weighted, Dante to line output

Headphone Output

• Type: stereo, configured to drive headphones through 100 ohm series resistors
• Compatibility: intended for connection to headphones with impedance of 100 ohms or greater
• Level: adjustible using rotary level control
• Maximum Voltage: 8 Vpp, 100 ohm load

Line Outputs: 2

• Type: electronically balanced, capacitor-coupled, intended to drive balanced or unbalanced loads of 2 k ohms or greater
• Source Impedance: 200 ohms
• Nominal Level: adjustable using rotary level control, +4 dBu @ 100% rotation
• Maximum Level: +24 dBu into 2 k ohms

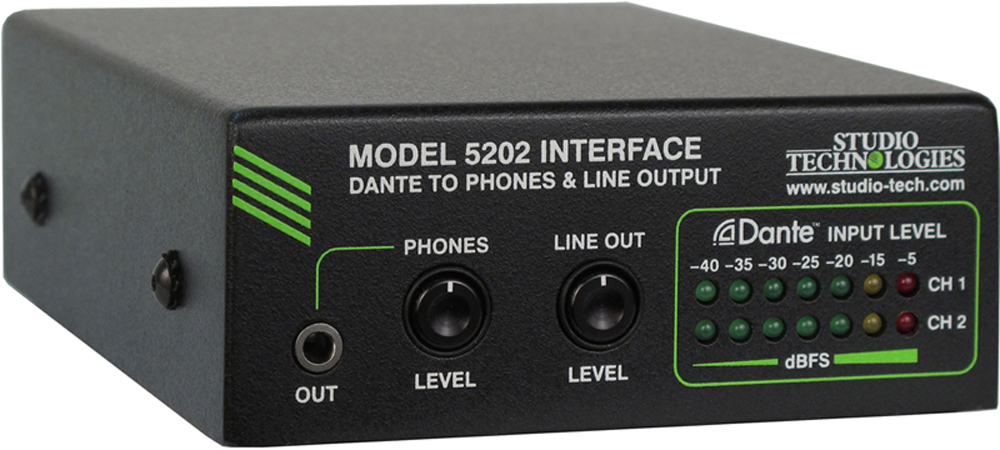

Meters: 2

• Function: displays level of Dante input signals
• Type: 7-segment LED, modified VU ballistics

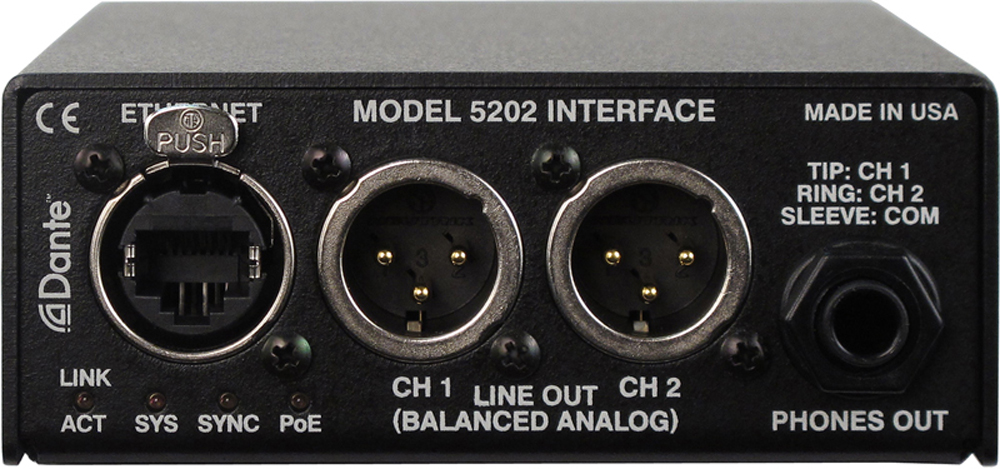

Connectors

• Ethernet: Neutrik etherCON RJ45
• Headphone Output: 3.5 mm and 1/4inch 3-conductor jacks
• Line Outputs: 3-pin male XLR

Dimensions (Overall)

• 4.2 inches wide (10.7 cm)
• 1.7 inches high (4.3 cm)
• 5.1 inches deep (13.0 cm)

Mounting Option

• bracket kit

Weight

• 0.8 pounds (0.35 kg)

MBK-02

マウンティング・ブラケット
