• Dante audio-over-Ethernet テクノロジー
• 2系統のラインレベル入力
• 高音質設計
• PoEにより電源供給
• レベルメーター搭載
• USBデバイスへの給電が可能なポート
• コンパクトな筐体

Network Audio Technology

• Type: Dante audio-over-Ethernet
• Bit Depth: up to 24
• Sample Rates: 44.1, 48, 88.2, and 96 kHz
• Number of Transmitter (Output) Channels: 2
• Dante Audio Flows: 2 transmitter
• Analog to Digital Equivalence: a +4 dBu input with 0 dB gain selected results in a Dante digital output level of -20 dBFS

Network Interface

• Type: twisted-pair Ethernet with Power-over-Ethernet (PoE)
• Data Rate: 100 Mb/s (10 Mb/s Ethernet not supported)

Power

• Power-over-Ethernet (PoE) per IEEE 802.3af class 3 (mid power, ≤12.95 watts)

General Audio Parameters

• Frequency Response: 20 Hz to 20 kHz, ±0.5 dB, line input B to Dante
• Distortion (THD+N): 0.01%, measured at 1 kHz, +4 dBu, line input B to Dante
• Dynamic Range: >100 dB, A-weighted, line input B to Dante

Line Input A

• Type: 2-channel ("stereo") unbalanced, capacitor-coupled
• Input Impedance: 10 k ohms
• Nominal Level: adjustable using rotary level control, -3dBu @ 100% rotation
• Maximum Level: +10 dBu

Line Input B

• Type: 2-channel ("stereo") electronically balanced, capacitor-coupled
• Input Impedance: 20 k ohms
• Nominal Level: adjustable using rotary level control, +11 dBu @ 100% rotation
• Maximum Level: +24 dBu

Meters: 2

• Function: displays level of Dante output signals
• Type: 7-segment LED, modified VU ballistics

Dedicated Charging Port

• Function: powering and charging of connected devices; no data interface
• Output (Nominal): 5 volts DC, 1 amp (5 watts)
• Compatibility: auto-detect supports divider mode, short mode, and 1.2 V/1.2 V charging modes

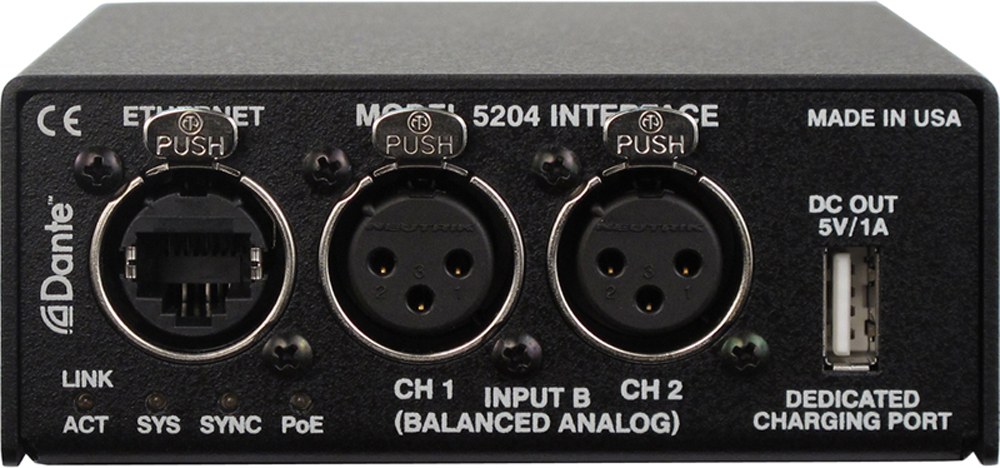

Connectors

• Ethernet: Neutrik etherCON RJ45
• Line Input A: 3-conductor ("stereo") 3.5 mm jack
• Line Input B: 2, 3-pin female XLR
• Dedicated Charging Port: USB type A receptacle

Dimensions (Overall)

• 4.2 inches wide (10.7 cm)
• 1.7 inches high (4.3 cm)
• 5.1 inches deep (13.0 cm)

Mounting Option

• bracket kit

Weight

• 0.8 pounds (0.35 kg)

MBK-02

マウンティング・ブラケット
