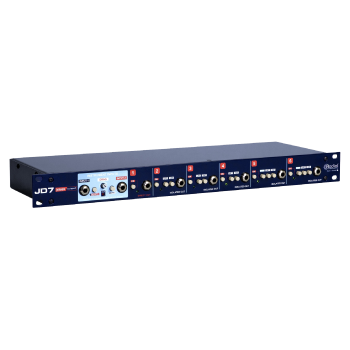

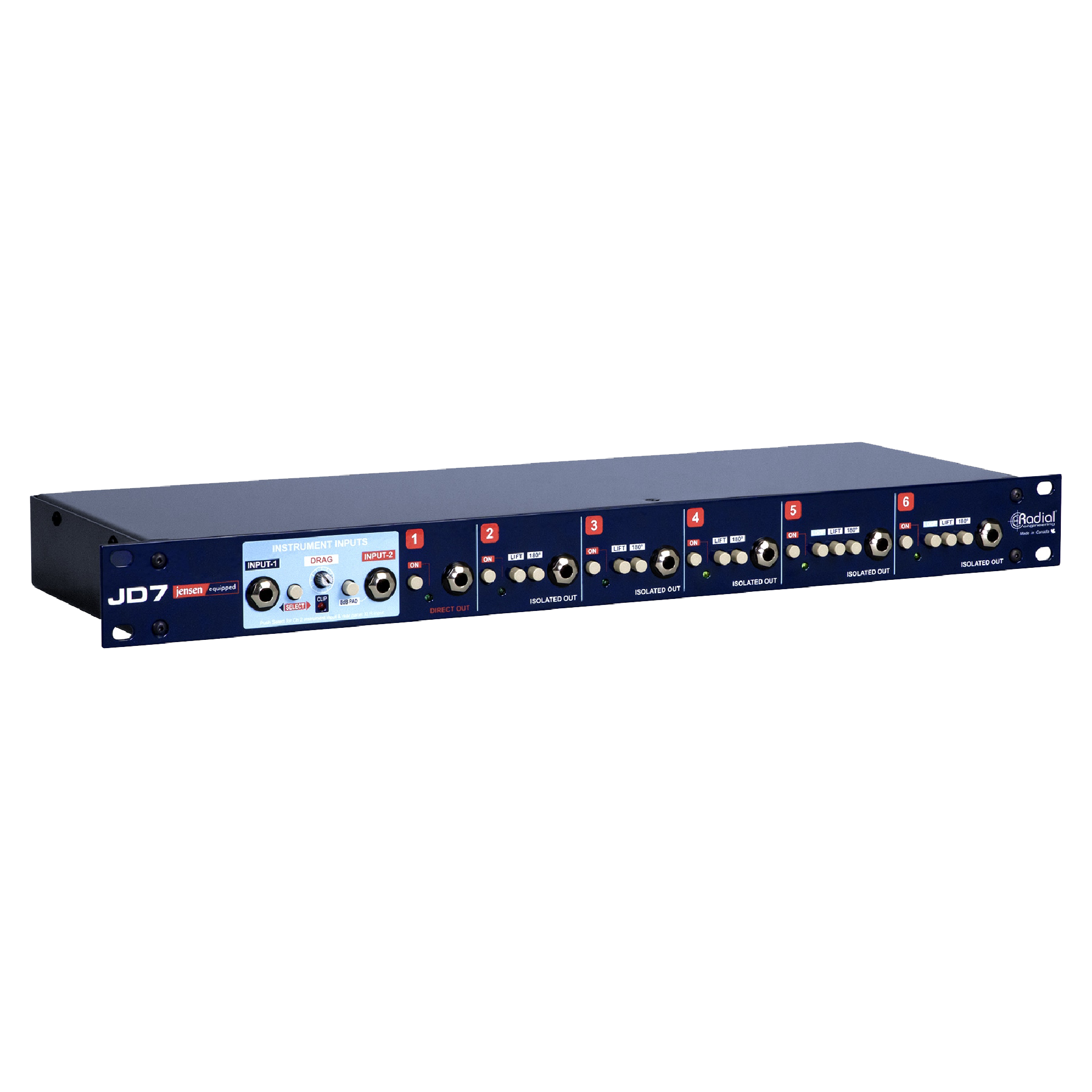

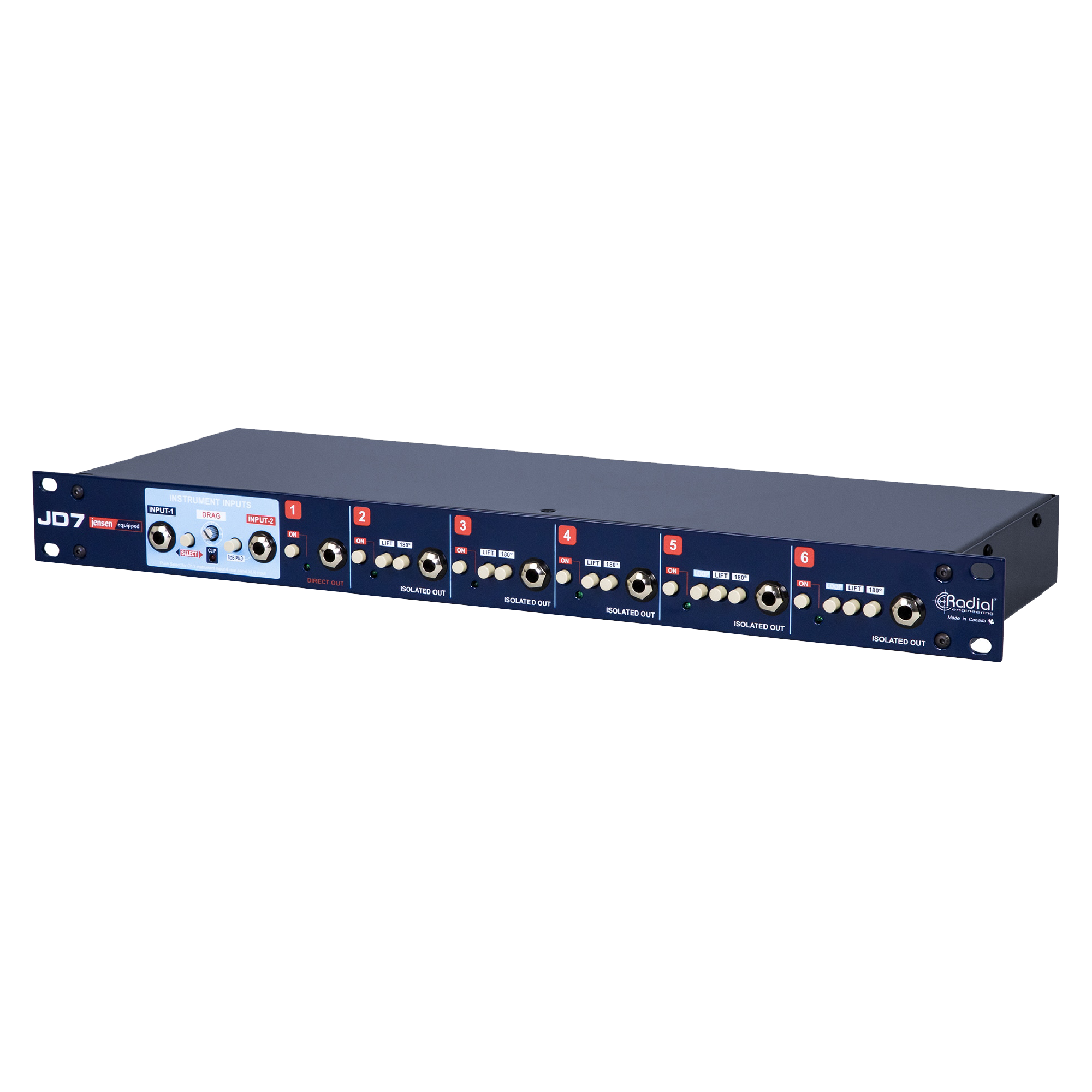

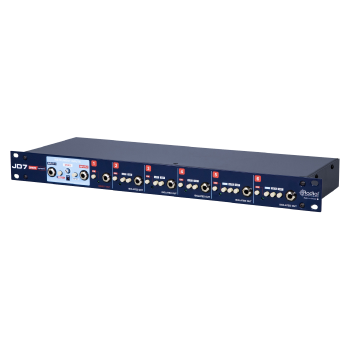

製品紹介

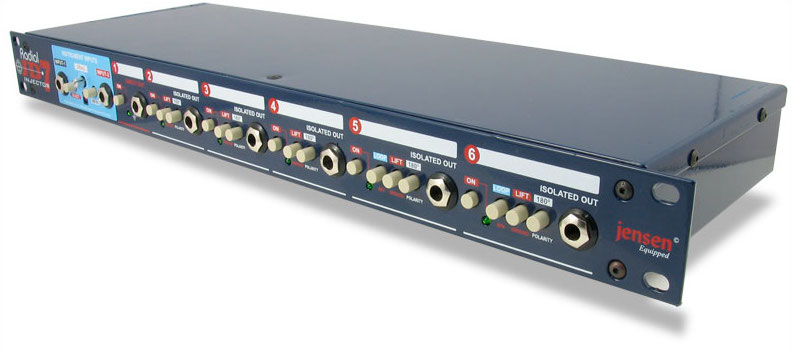

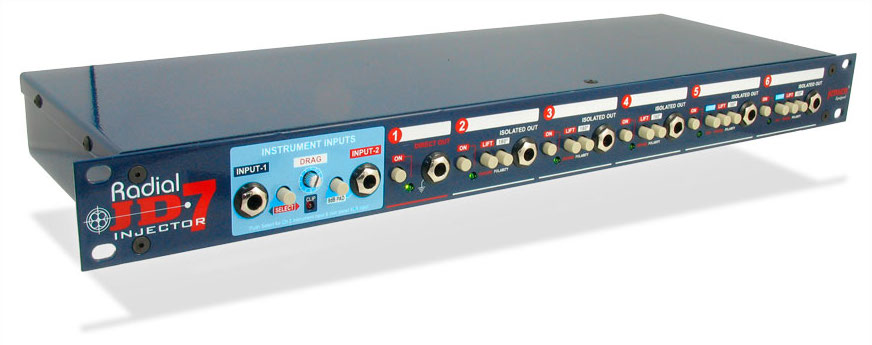

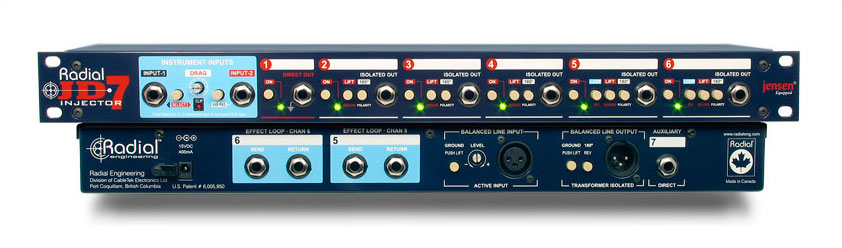

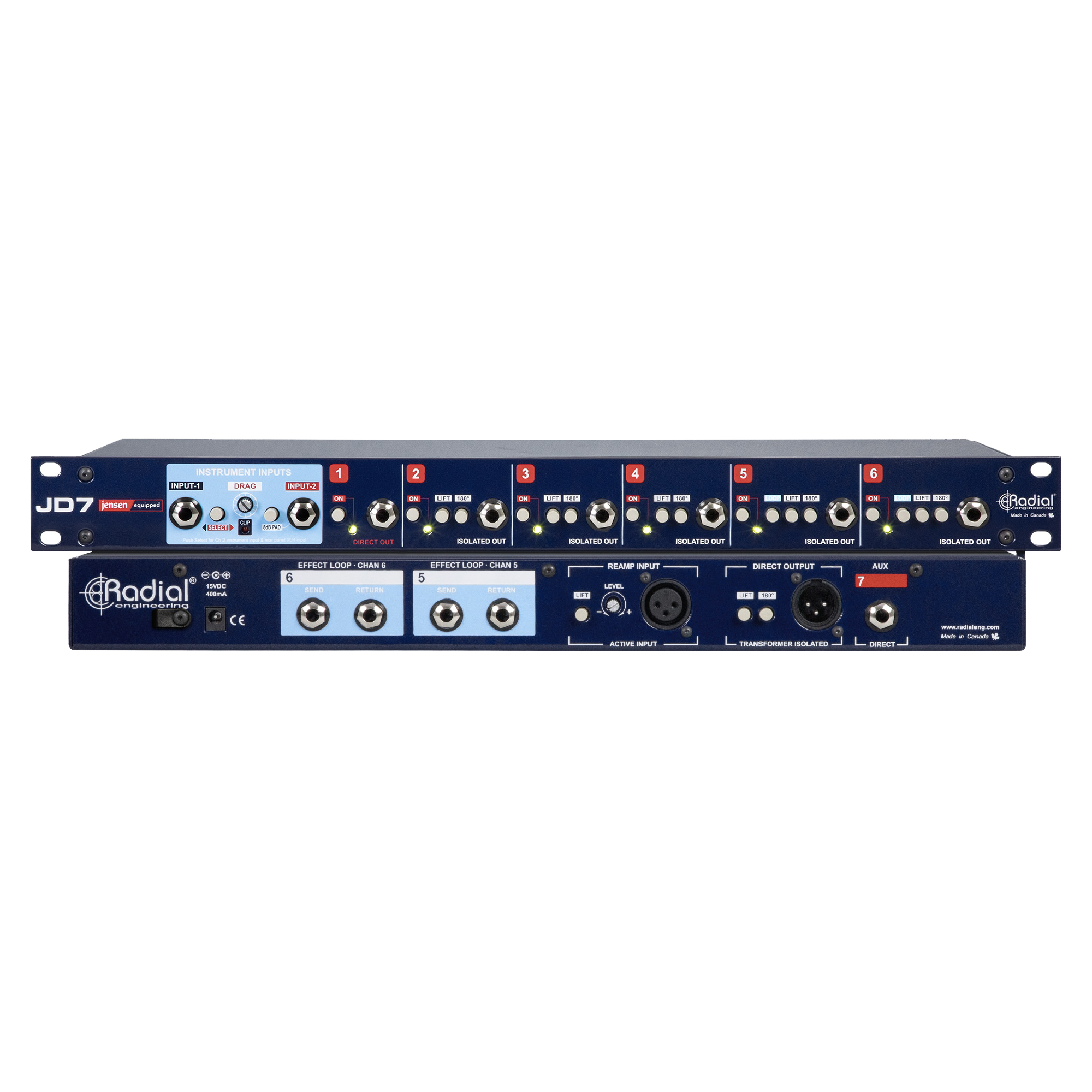

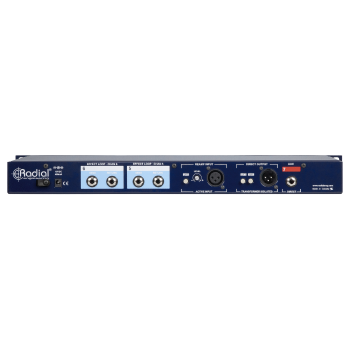

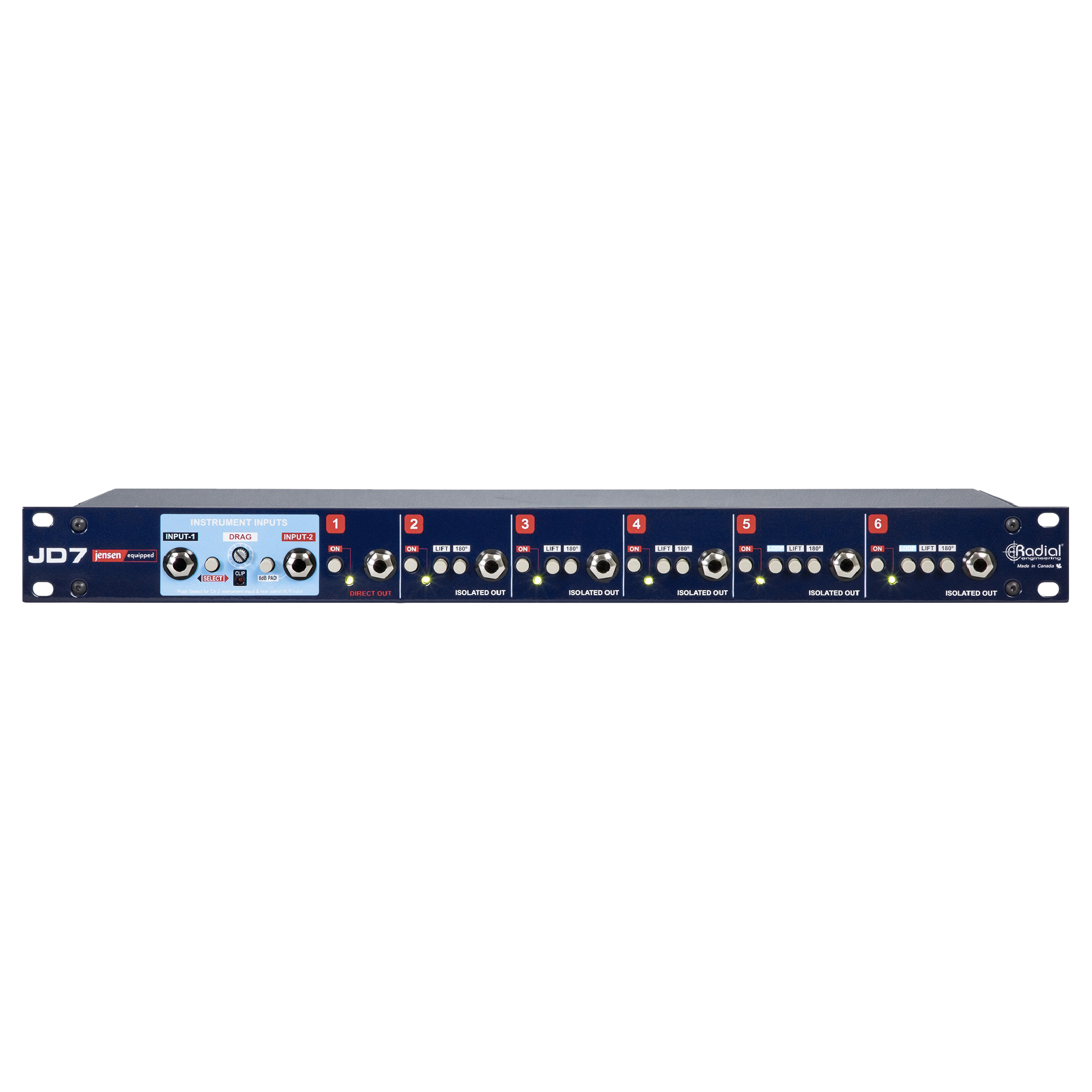

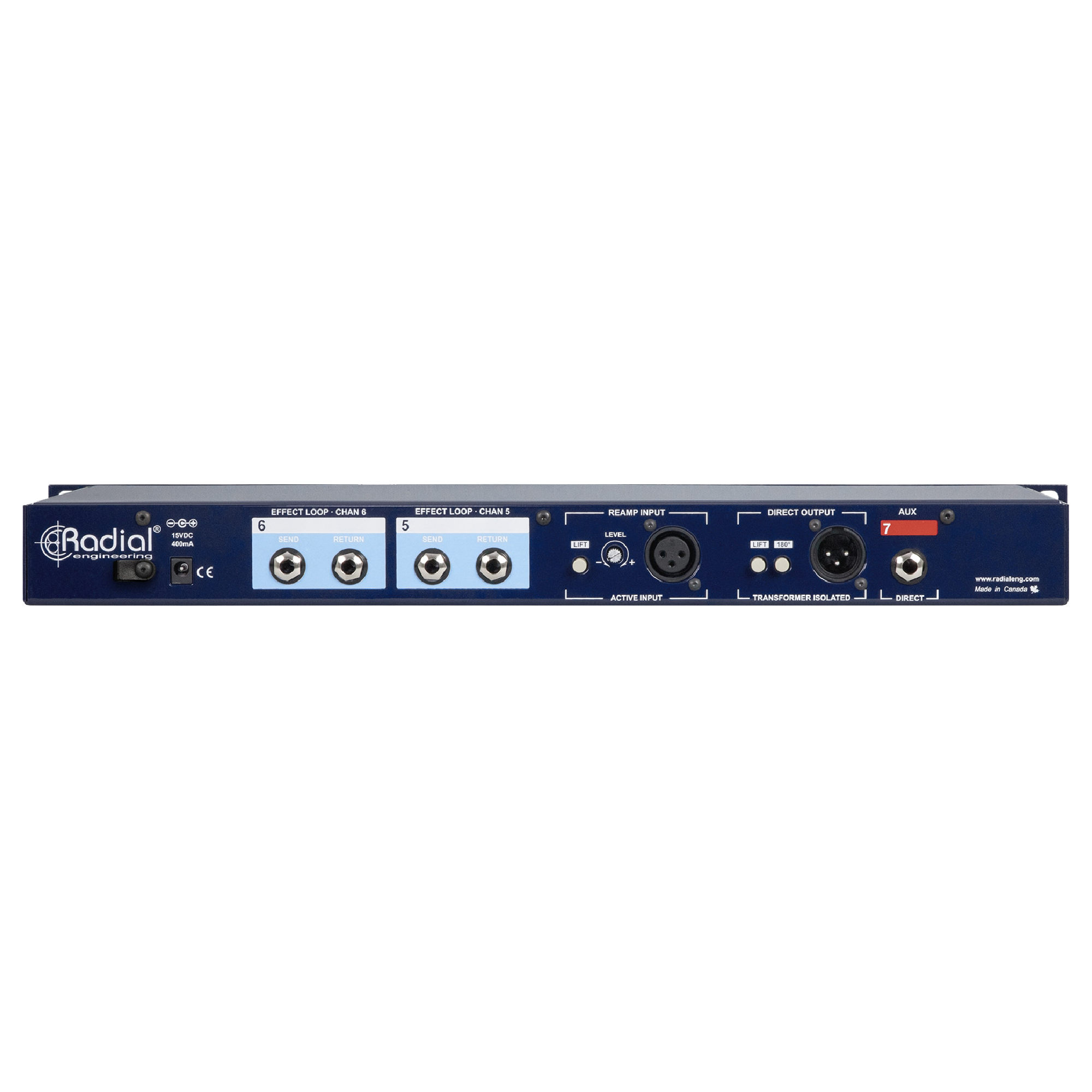

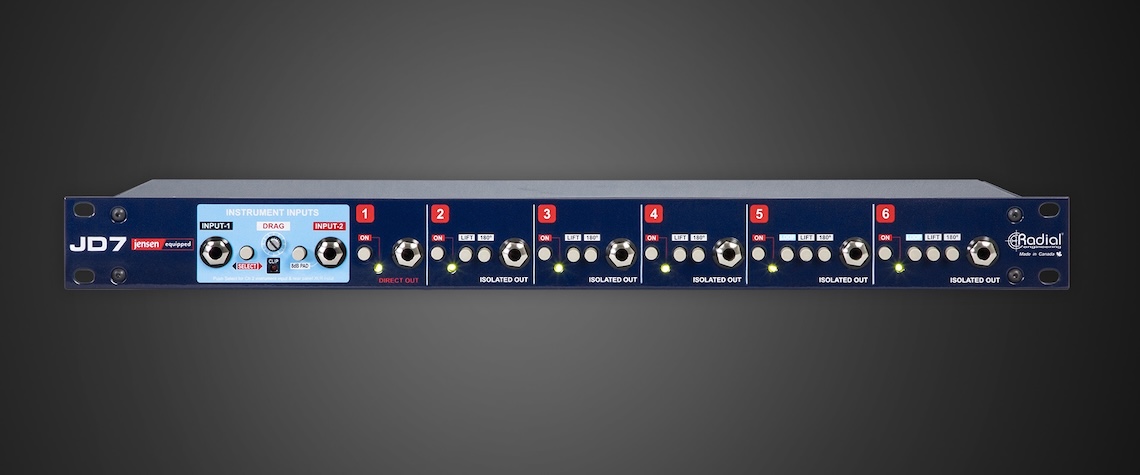

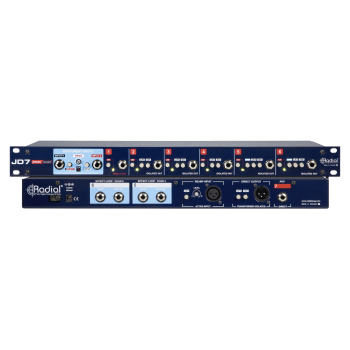

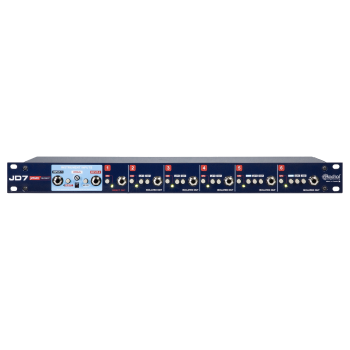

1イン7アウト。入力はフロントに2つあり切り替えて使います。リアの入力はXLR仕様で1と共通、両方繋ぐとフロントが優先です。 アウトプットは1~7。1と7はダイレクト・アウト。7はリアにあります。2~6はジェンセントランスで入出力を絶縁することでグランドループによるハムノイズの発生を防ぎます。更に5と6にはエフェクトループを装備。リアにXLRアウトもあります。

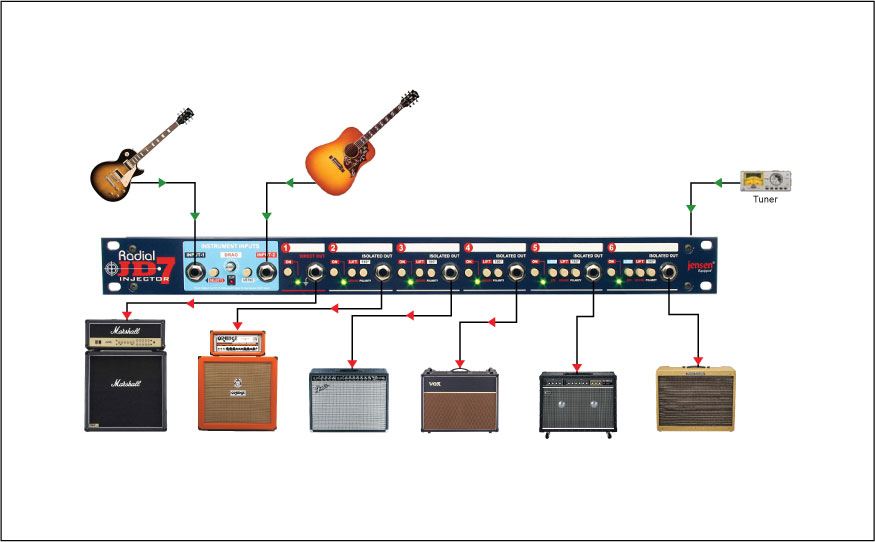

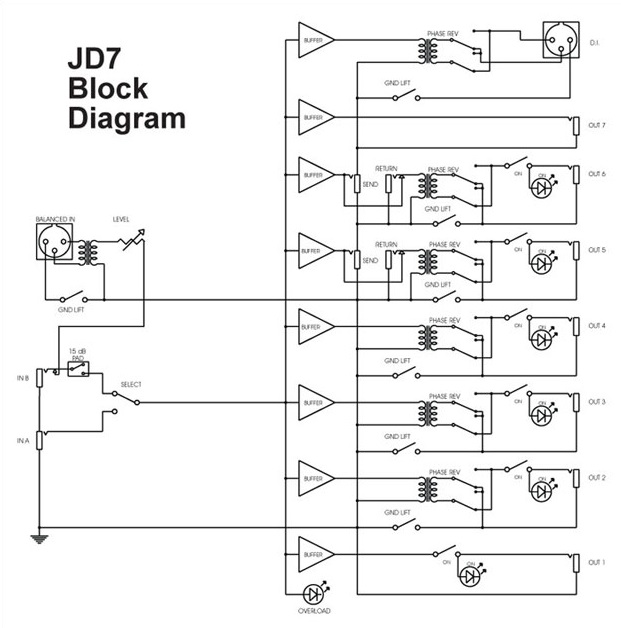

接続例
技術仕様
Specifications
- Audio circuit type: 100% discrete class-A with transformer isolation
- Frequency response: 20Hz ~ 20kHz (± 1dB)
- Signal to noise ratio: -115dB (0dBu input)
- Dynamic range: 125dB (unbalanced input to unbalanced output)
- Noise floor: -115dBu (direct output-1)
- -115dBu (isolated outputs)
- Maximum input: +13dBu (unbalanced ¼" instrument inputs-A & B)
- +23dBu (balanced line-level reamping input)
- Total harmonic distortion: 0.05% @ 1k (direct output-1)
- 0.05% @ 1k (isolated outputs)
- 0.1% @ 1k (balanced DI mic-level output)
- Inter-modulation distortion: 0.2% @ -20dBu
- Input impedance: Variable from 10k Ohms ~ 1megaOhm
- Output impedance: ¼" unbalanced: 10k Ohms; XLR balanced: 150 Ohms
Features
- Input select: A or B selectable inputs
- Input pad: -8dB (input B)
- Phase reverse: 180° polarity reverse (isolated outputs)
- XLR output: Transformer isolated DI out with phase rev. & gnd lift
- XLR input: Balanced line-level Reamp input with gnd lift
- Ground lift: Isolated channels 2 thru 6; Bal XLR I/O
- XLR configuration: AES standard (pin-2 hot)
General
- Power: +15VDC/400mA adapter included
- Construction: 14 gauge steel chassis & outer shell
- Finish: Durable powder coat
- Size: 17.5" x 6" x 1.75" (44.5 x15.25 x 1.75cm)
- Weight: 7.5 lb (3.4 kg)
- Shipping size 22" x 10" x 4.5" (55.9 x 25.4 x 11.4cm)
- Shipping weight 8lbs (3.63kg)
- Conditions: For use in dry locations only between 5°C and 40°C
