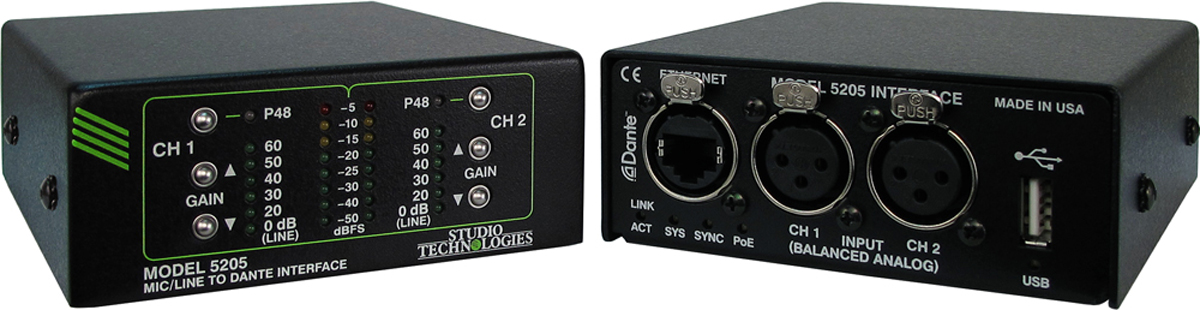

• Dante audio-over-Ethernet テクノロジー
• 2系統のマイク/ラインレベル入力
• プリアンプのゲイン調整，48Vファンタム電源の切り替え
• 高音質設計
• PoEにより電源供給
• レベルメーター搭載
• 設定はSTcontrollerアプリケーションを使用
• コンパクトな筐体

Network Audio Technology

• Type: Dante audio-over-Ethernet
• Bit Depth: 24
• Sample Rates: 44.1, 48, 88.2, and 96 kHz
• Number of Dante Transmitter (Output) Channels: 2
• Dante Audio Flows: 2 transmitter
• Analog to Digital Equivalence: a +4 dBu input with 0 dB gain selected results in a Dante digital output level of -20 dBFS

Network Interface

• Type: twisted-pair Ethernet with Power-over-Ethernet (PoE)
• Data Rate: 100 Mb/s (10 Mb/s Ethernet not supported)

Power

• Power-over-Ethernet (PoE) per IEEE 802.3af class 2 (low power, ≤6.49 watts)

General Audio Parameters

• Frequency Response (48 kHz Sample Rate): +0.0/・.5 dB, 20 Hz to 22 kHz
• Frequency Response (96 kHz Sample Rate): +0.0/・.5 dB, 20 Hz to 40 kHz
• Distortion (THD+N): 0.001% (・00 dB) at ・ dBFS, 40 dB gain, 22 kHz bandwidth
• Dynamic Range: >114 dB, 0 dB gain, A-weighted
• EIN: ・23 dBu, 22 kHz bandwidth, 60 dB gain, 150 ohm source resistance
• IMD (SMPTE): <0.002%, 60 Hz/7 kHz, 4:1, -20 dBFS

Mic/Line Inputs: 2

• Type: electronically balanced
• Input Impedance: 3.7 k ohms
• CMRR: >75 dB, 20 Hz to 22 kHz, 40 dB gain
• Gain, Nominal (Button Selected): 0 (line), 20, 30, 40, 50, and 60 dB
• Gain, Actual (Button Selected): 0 (line), 19, 31, 40, 49, and 61 dB
• Gain (Remote Control Selected): 0 dB (line), 10 dB, 19-70 dB in 3-dB steps
• Compatibility: dynamic, ribbon, or phantom-powered mics
• Phantom Power: P48 per IEC 61938 standard, +45 volts DC nominal, on/off selectable

Remote Configuration Capability

• preamplifier gain and P48 phantom power on/off status (uses STcontroller application)

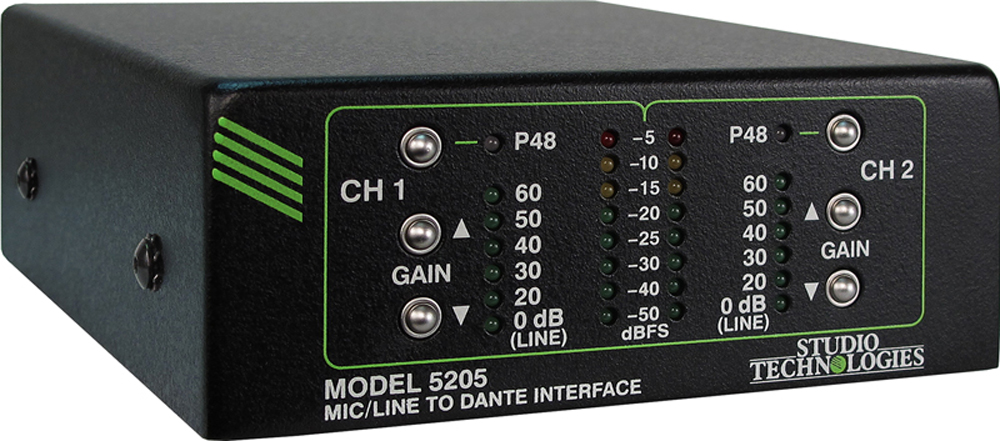

Meters: 2

• Function: displays level of Dante transmitter (output) signals
• Type: 8-segment LED, modified VU ballistics

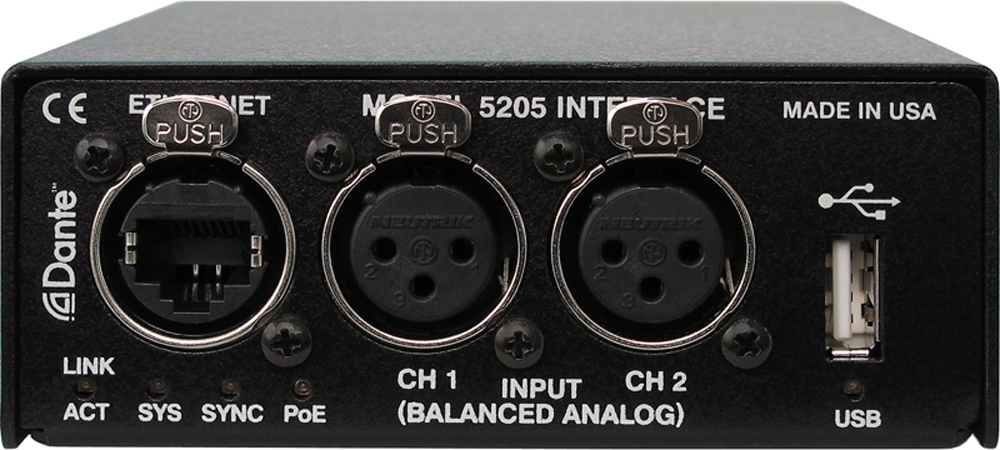

Connectors

• Mic/Line Inputs: 3-pin female XLR
• Ethernet: Neutrik etherCON RJ45
• USB: type A receptacle

Dimensions (Overall)

• 4.2 inches wide (10.7 cm)
• 1.7 inches high (4.3 cm)
• 5.1 inches deep (13.0 cm)

Mounting Option

• bracket kit

Weight

• 0.8 pounds (0.35 kg)

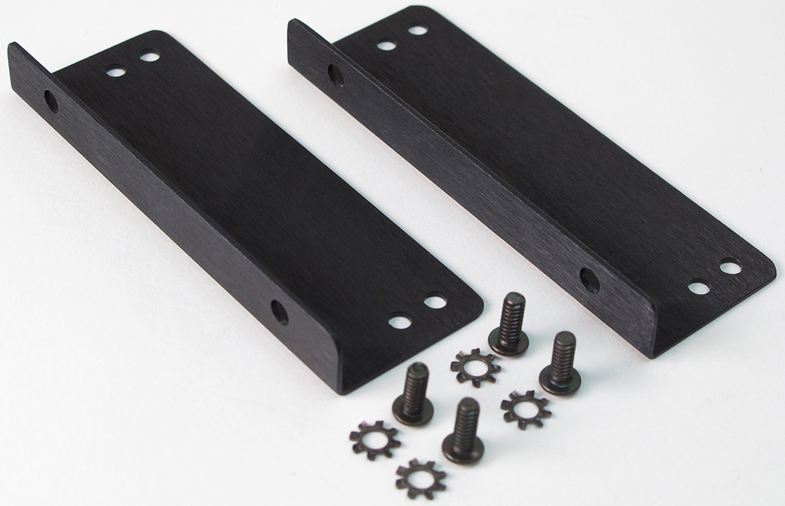

MBK-02

マウンティング・ブラケット
