Model 545AR【NEW】
2ワイヤー/4ワイヤー双方向変換インターフェイス
製品紹介
Model 545ARは、2線式(2wire)アナログパーティーライン(PL)インターコム回路と
4線式(4wire)アナログオーディオデバイスとを接続するためのインターフェースです。
(2つのアナログ入/出力チャネルを提供します。）
本機は、RTS® TW®シリーズPLインカム回路の仕様に最適化されており、マトリックスインカムシステムや他のオーディオデバイスのような4線式デバイスとの接続により、スポーツ中継やライブイベント、テーマパーク、劇場、企業のAVシステムなどのアプリケーションに最適です。なお、軽量な卓上筐体に収納された本体は、オプションの取り付けキットによりラックマウントも可能です。電源は外部DC12V供給仕様となります。(電源アダプター”PS-DC-02J”付属)
主な特長
- オートヌル機能を備えたハイブリッド回路を搭載
- 優れたオーディオ品質と高いリターンロスを実現
- 12V DCの外部電源にて駆動、インターコム回路から完全に絶縁
- パーティーラインに直接接続可能で、200オームの終端や28V DC電力を供給する機能を装備
- コンパクトな設計で、デスクトップおよびラックマウントでの使用可
技術仕様
Power Requirement:
- 10 to 16 volts DC, 1.2 A max at 12 volts DC, Studio Technologies' PS-DC-02 (100-240 V, 50/60 Hz, input; 12 volts DC, 1.5 A, output) included with each unit
General Audio:
- Frequency Response: -0.3 dB @ 100 Hz (-4.8 dB @ 20 Hz), -2 dB @ 8 kHz (-2.6 dB @ 10 kHz)
- Distortion (THD+N): -4-Wire Input to PL Interface Pin 2: <0.15%, measured at 1 kHz
- Distortion (THD+N): -4-Wire Input to PL Interface Pin 3: <0.15%, measured at 1 kHz
- Signal-to-Noise Ratio: -4-Wire Input to PL Interface Pin 2: >65 dB, A-weighted, measured at 1 kHz
- Signal-to-Noise Ratio: -4-Wire Input to PL Interface Pin 3: >73 dB, A-weighted, measured at 1 kHz
Party-Line (PL) Intercom Interface:
- Type: 2-channel analog PL, unbalanced (pin 1 common; pin 2 DC with channel 1 audio; pin 3 channel 2 audio)
- Compatibility: 2-channel PL intercom systems such as those offered by RTSR
- Power Source: 28 volts DC, 300 mA maximum, on XLR pin 2
- Impedance - Local PL Power Not Enabled: >10 k ohms
- Impedance - Local PL Power Enabled: 200 ohms
- Analog Audio Level Pin 2: -10 dBu, nominal, +3 dBu maximum
- Analog Audio Level Pin 3: -10 dBu, nominal, +7 dBu maximum
- Mic Kill Signal Support: 24 kHz, ±1%, square-wave
Party-Line (PL) Hybrids: 2
- Topology: 3-section analog circuitry compensates for resistive, inductive, and capacitive PL loads
- Nulling Method: automatic upon user initiation, processor implements digital control of analog circuitry; settings stored in non-volatile memory
- Nulling Line Impedance Range: 120 to 350 ohms
- Nulling Cable Length Range: 0 to 3500 feet
- Trans-Hybrid Loss - PL Interface Pin 2: >50 dB, typical at 800 Hz
- Trans-Hybrid Loss - PL Interface Pin 3: >55 dB, typical at 800 Hz
4-Wire Inputs: 2
- 2
- Type: transformer-coupled, capacitor isolated
- Impedance: 13 k ohms
- Nominal Level: +4 dBu
- Maximum Level: +22 dBu
4-Wire Outputs: 2
- 2
- Type: transformer-coupled, capacitor isolated
- Impedance: 50 ohms nominal
- Nominal Level: +4 dBu
- Maximum Level: +20 dBu into 2 k ohms
Meters: 4
- Function: displays level of 4-wire audio input and output channels
- Type: 5-segment LED, modified VU ballistics

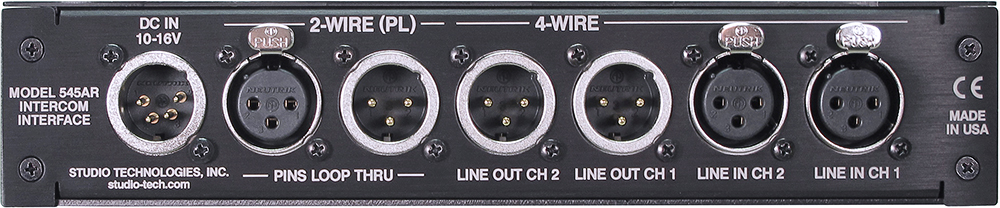

Connectors:
- Party-Line (PL or 2-Wire) Interface: 1, 3-pin male XLR and 1, 3-pin female XLR
- 4-Wire (Line) Inputs: 2, 3-pin female XLR
- 4-Wire (Line) Outputs: 2, 3-pin male XLR
- Power (DC) Input: 4-pin male XLR
Environmental:
- Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
- Storage Temperature: ?40 to 70 degrees C (?40 to 158 degrees F)
- Humidity: 5 to 95%, non-condensing
- Altitude: not characterized
Dimensions - Overall:
- 8.70 inches wide (22.1 cm)
- 1.72 inches high (4.4 cm)
- 8.30 inches deep (21.1 cm)
Weight: 1.7 pounds (0.77 kg); rack-mounting
- installation kits add approximately 0.2 pounds (0.09 kg)
Deployment: intended for tabletop applications. Four optional mounting kits are also available:
- RMBK-10 allows one unit to be mounted in a panel cutout or on a flat surface
- RMBK-11 allows one unit to be mounted in the left- or right-side of one space (1U) of a standard 19-inch rack
- RMBK-12 allows two units to be mounted in one space (1U) of a standard 19-inch rack
- RMBK-13 allows one unit to be mounted in the
- center of one space (1U) of a standard 19-inch rack
