Model 76DA & Model 77

5.1サラウンドおよびステレオ対応モニタリングシステム,
アンバランス・デジタル入力,バランス/アンバランス・デジタル出力,アナログ出力

主な特長

  • AES3 アンバランス・デジタル・オーディオ入力
  • AES3 アンバランス・デジタル・オーディオ出力,アナログ出力
  • ベース・マネージメント機能
  • ダウンミックス設定
  • チャンネル・ミュート/ソロ
  • レベル調整,リファレンスレベル,DIM
技術仕様

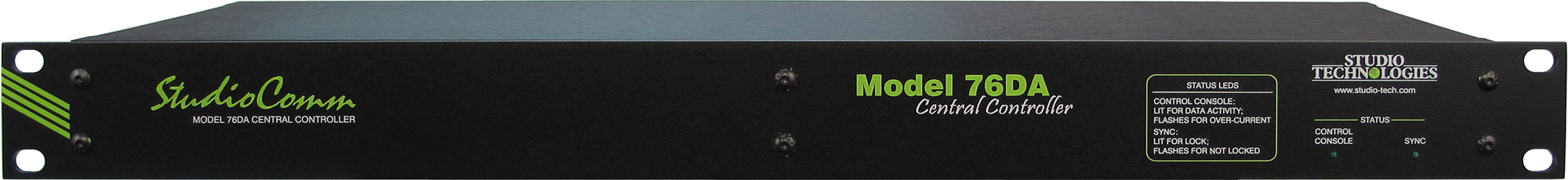

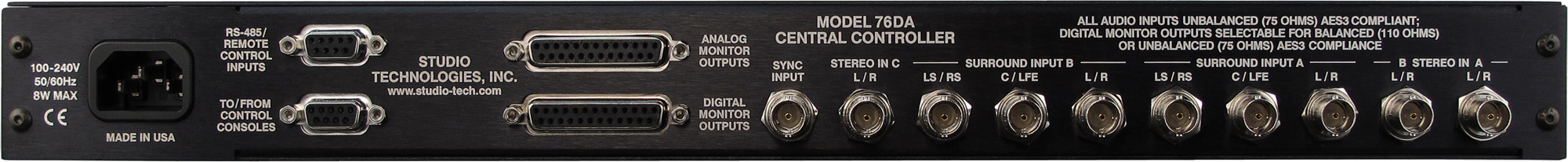

Model 76DA Central Controller

  • General Audio:
  • Supported Sample Rates: 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz
  • Word Length: 24 bits maximum
  • Internal Processing: 32 bits
  • Input-to-Output Latency: two samples (e.g., 0.042 milliseconds @ 48 kHz sample rate)

Digital Audio Inputs

  • 5 (18 audio channels)
  • Configuration: two surround (5.1) and three stereo
  • Type: AES3 unbalanced (75 ohms/1 Vpp)
  • Connectors: BNC (per IEC 60169-8 Amendment 2)

Sample Rate Conversion (SRC)

  • Application: available on Stereo Input C
  • Input Sample Rate Range: 8 to 216 kHz, limited to 1/6 to 6 times the output sample rate
  • Latency: 1 millisecond, nominal

Sync Source

  • configured to follow L/R of currently selected input or signal connected to sync input

Sync Input

  • Compatible Sources: word clock, DARS (AES11), bi-level video, tri-level video
  • Jitter: 4 ns pp maximum
  • Connector: BNC (per IEC 60169-8 Amendment 2)
  • Termination: 75 ohms, selectable on/off

Digital Monitor Outputs

  • 16 (eight pairs)
  • Configuration: organized as two surround (5.1) and two stereo
  • Dynamic Range: >135 dB
  • Type: AES3 balanced (110 ohms/5 Vpp) or unbalanced (75 ohms/1 Vpp), selectable
  • Connector: 25-pin female D-subminiature (DB-25F)

Analog Monitor Outputs

  • 8
  • Configuration: organized as one surround (5.1) and one stereo (2-channel)
  • Type: electronically balanced, source impedance 200 ohms
  • Nominal Level: +4.0 dBu @ ・0 dBFS input source and level control at maximum setting
  • i
  • Maximum Level: +24 dBu into 2000 (2 k) ohms or greater
  • Frequency Response, Digital Inputs to Analog Monitor Outputs: 10 Hz-20 kHz +0.0/・.3 dB @ 48 kHz sample rate; ・ dB @ 64 kHz
  • /l
  • Distortion (THD+N): <0.002%, ・ dBFS, 20-22 kHz, 22 kHz bandwidth
  • i
  • S/N Ratio: 89 dB, ref +4 dBu output
  • Dynamic Range: >109 dB
  • Crosstalk: ・8 dB at 1 kHz; ・7 dB at 16 kHz, ref ・ dBFS input
  • tConnector: 25-pin female D-subminiature (DB-25F)

Configurable Input Delay

  • 0 to 340 milliseconds @ 48 kHz sample rate (scales up or down depending on actual sample rate)
  • Post-Fader Monitor Output Level Offsets: each surround and stereo channel independently adjustable in 0.5-dB steps over a ±12-dB range. (Digital and analog outputs associated with a specific channel share the same setting.)

Bass Management

  • Supported Sample Rates: 44.1, 48, 88.2, and 96 kHz only
  • Crossover Frequency and Type: ・ dB @ 40, 50, 60, or 80 Hz, symmetrical for low-pass and high-pass filters, maximally flat
  • i
  • Filter Slope: 12 or 24 dB/octave
  • Overall Operation: independent on/off selectable for surround and stereo post-fader monitor outputs

Downmix

  • Functions: surround to stereo, stereo to mono
  • Surround to Stereo:
  • L @ 0 or ・ dB;
  • i
  • R @ 0 or ・ dB;
  • i
  • C @ ・ or ・ dB summed with L and R;
  • /l
  • LFE @ full attenuation or ・ dB summed with L and R;
  • i
  • LS @ ・ or ・ dB summed with L;
  • /l
  • RS @ ・ or ・ dB summed with R;
  • /l
  • C, SUB, LS, and RS monitor outputs mute
  • Stereo to Mono:
  • L @ ・ dB summed with R @ ・ dB to C;
  • /l
  • L, R, LS, RS, and SUB monitor outputs mute
  • For a surround input this results in the C output being the sum of L @ ・ or ・ dB, R @ ・ or ・ dB; C @ ・ or ・ dB, LFE @ full attenuation or ・ dB; LS @ ・ or ・ dB, and RS @ ・ or ・ dB.
  • 窶・ or 窶

Control Console Interface

  • Type: RS-485, 115.2 kbit/s, 8-1-N
  • Polling Interval: 50 milliseconds
  • Power: 12 Vdc, 500 mA maximum
  • Connector: 9-pin female D-subminiature (DE-9F)

Remote Control Inputs

  • 2
  • Functions: remote mute all, remote dim
  • Type: 5 Vdc logic, activates on closure to system common
  • Connector: 9-pin female D-subminiature (DE-9F)

AC Mains

  • Requirement: 100 to 230 V, +10/・5%, 50/60 Hz, 15 W maximum
  • i
  • Connector: 3-blade, IEC 320 C14-compatible (mates with IEC 320 C13)

Dimensions

  • 19.00 inches wide (48.3 cm)
  • 1.72 inches high (4.4 cm)
  • 7.00 inches deep (17.8 cm)

Mounting

  • one space (1U) in a standard 19-inch rack

Weight

  • 3.6 pounds (1.6 kg)

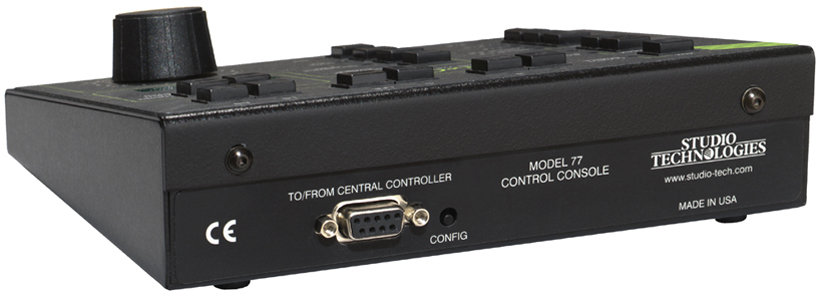

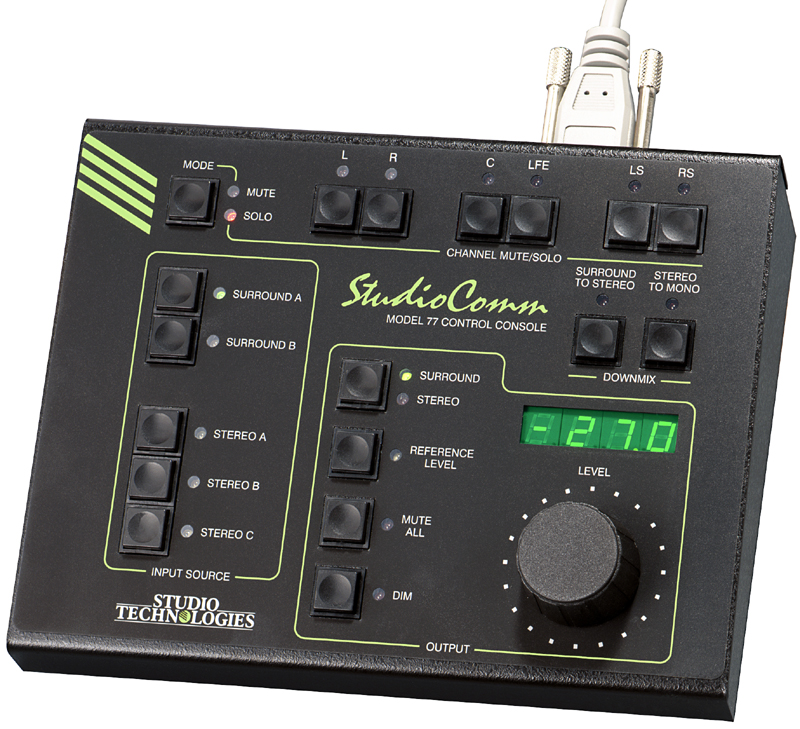

Model 77 Control Console

Application

  • up to four Model 77 Control Consoles can be connected to a Model 76D Central Controller

Power

  • 12 Vdc nominal (9 Vdc minimum), maximum current 100 mA, provided by Model 76D Central Controller

Control Data

  • Type: RS-485
  • Data Rate/Format: 115.2 kbit/s, 8-N-1
  • Connector: 9-pin female D-subminiature (DE-9F)

Dimensions (Overall)

  • 7.20 inches wide (18.3 cm)
  • 2.20 inches high (5.6 cm)
  • 5.40 inches deep (13.7 cm)

Weight

  • 1.7 pounds (0.8 kg)

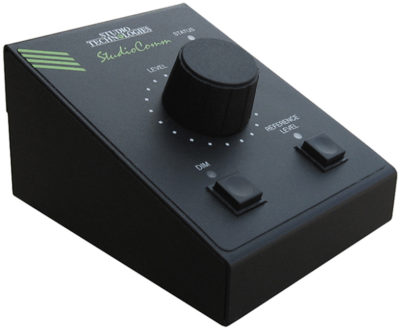

Model 71 Control Console

Application

  • up to three Model 71 Control Consoles can be connected to a Model 76D Central Controller

Power

  • 12 Vdc nominal (9 Vdc minimum), maximum current 35 mA, provided by Model 76D Central Controller

Control Data

  • Type: RS-485
  • Data Rate/Format: 115.2 kbit/s, 8-N-1
  • Connector: 9-pin female D-subminiature (DE-9F)

Dimensions (Overall)

  • 3.20 inches wide (8.1 cm)
  • 2.20 inches high (5.6 cm)
  • 4.10 inches deep (10.4 cm)

Weight

  • 0.8 pounds (0.4 kg)

Model 71

希望小売価格: 62,480円(税抜 56,800円)

コントロール・コンソール
