• Dante audio-over-Ethernet テクノロジー
• パワード IFB出力
• ラインレベル IFB出力
• 高音質設計
• PoEおよび12Vdcによる電源供給
• テーブルトップ，ポータブル，ラックマウント（オプション）

Power Sources

• Power-over-Ethernet (PoE): class 3 (mid power, ≤12.95 watts) per IEEE 802.3af
• External: 10 to 18 volts DC, 1.0 amp maximum at 12 volts DC

Network Audio Technology

• Type: Dante audio-over-Ethernet
• Bit Depth: up to 24
• Sample Rates: 44.1, 48 kHz
• Number of Receiver (Input) Channels: 4
• Dante Audio Flows: 2 receiver

Network Interface

• Type: twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
• Data Rate: 100 Mb/s (10 Mb/s Ethernet not supported)

Powered IFB Outputs: 2

• Type: 2-channel analog powered IFB, unbalanced (pin 1 common; pin 2 DC with channel 1 audio; pin 3 channel 2 audio)
• Compatibility: 2-channel listen-only IFB user devices such as those offered by Studio Technologies
• Power Source: 28 volts DC, 120 mA maximum, nominal
• Analog Audio Level: -10 dBu, nominal, +4 dBu maximum, pins 2 and 3
• Frequency Response: ±1 dB, 20 Hz-20 kHz
• Distortion (THD+N): <0.02%, measured at 1 kHz, pins 2 and 3
• Signal-to-Noise Ratio: >85 dB, A-weighted, measured at 1 kHz, pins 2 and 3

Line-Level IFB Outputs: 2

• Type: transformer-coupled, capacitor isolated
• Nominal Level: -10 dBu
• Maximum Level: +10 dBu into 2 k ohms
• Frequency Response: -1dB @ 20 Hz, -1.3 dB @ 20 kHz
• Distortion: <0.04%, measured at 1 kHz
• Signal-to-Noise Ratio: >87 dB, A-weighted, measured at 1 kHz

Meters: 4

• Function: displays level of IFB output audio channels
• Type: 5-segment LED, modified VU ballistics

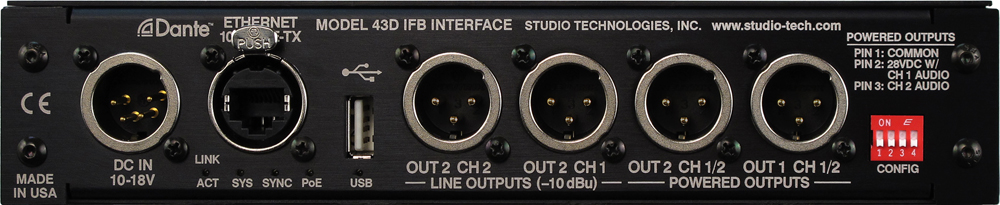

Connectors

• Powered and Line-Level IFB Outputs: 3-pin male XLR
• Ethernet: Neutrik etherCON RJ45
• External DC: 4-pin male XLR
• USB: type A receptacle

Dimensions ・Overall

• 8.7 inches wide (22.1 cm)
• 1.72 inches high (4.4 cm)
• 8.3 inches deep (21.1 cm)

Mounting Options

• single-unit rack-mount front panel (M43DRM-1), two-unit rack-mount front panel (M43DRM-2), and combination Model 45DR/Model 43D rack-mount front panel (RMFP-01); uses one space (1U) in a standard 19-inch rack

Weight

• 1.8 pounds (0.80 kg), rack-mount front panel adds 0.2 pounds (0.09 kg)

M43DRM-1

1台のModel 43Dを1Uラックにマウントするためのパネル

M43DRM-2

2台のModel 43Dを1Uラックにマウントするためのパネル

RMFP-01

Model 45DRおよびModel 43Dを1Uラックにマウントするためのパネル

PS-DC-02J

パワーサプライ(DC12V 1.5A)
