Network Audio Technology

• Type: Dante audio-over-Ethernet
• AES67-2013 Support: yes
• Dante Domain Manager (DDM) Support: yes
• Bit Depth: up to 24
• Sample Rates: 44.1 and 48 kHz
• Number of Transmitter (Output) Channels: 4
• Number of Receiver (Input) Channels: 4
• Dante Audio Flows: 4; 2 transmitter, 2 receiver

Network Interface

• Type: twisted-pair Ethernet
• Data Rate: 100 Mb/s (10 Mb/s not supported; 1000 Mb/s "GigE"
• Ethernet not supported unless falls back to 100 Mb/s)

Inputs 1 and 2

• Compatibility: unbalanced line-level sources
• Type: analog, unbalanced, capacitor coupled
• Impedance: 10 k ohms, nominal
• Nominal Level: ・0 dBu, adjustable with input level control
i
• Maximum Level: depends on setting of the input level control
• Dynamic Range: >116 dB, 0 dB gain, A-weighted
• Distortion (THD+N): <0.001% (・01 dB) at ・ dBFS, 40 dB gain, 22 kHz bandwidth
/l
• Frequency Response: +0.0/・.5 dB, 22 Hz to 22 kHz
i
• Status LEDs: 2, displays signal present/peak

Inputs 3 and 4

• Compatibility: balanced or unbalanced line-level sources
• Type: analog, electronically balanced, capacitor coupled
• Impedance: 20 k ohms, nominal
• Nominal Level: +4 dBu (results in Dante output level of ・0 dBFS)
i
• Maximum Level: +24 dBu (results in Dante output level of 0 dBFS)
• Dynamic Range: >116 dB, 0 dB gain, A-weighted
• Distortion (THD+N): <0.001% (・01 dB) at ・ dBFS, 40 dB gain, 22 kHz bandwidth
/l
• Frequency Response: +0.0/・.5 dB, 22 Hz to 22 kHz
i
• Status LEDs: 2, displays signal present/peak

Main, Auxiliary, and Monitor Outputs

• Type: analog, electronically balanced, capacitor coupled, intended to drive balanced or unbalanced loads of 2 k ohms or greater
• Source Impedance: 200 ohms
• Nominal Level ・Main and Auxiliary: +4 dBu, reference ・0 dBFS on Dante input
/l
• Nominal Level ・Monitor: 0 dBu, reference ・0 dBFS on Dante input
/l
• Maximum Level: +24 dBu with 0 dBFS on Dante input
• Dynamic Range: >119 dB, A-weighted
• Distortion (THD+N): 0.0012% (・9 dB), measured at ・ dBFS, 22 kHz bandwidth
/l
• Frequency Response: ±0.1 dB, 20 Hz to 20 kHz
• Status LEDs: 4, displays signal present/peak

Audio Monitor

• Source: inputs 1-4 or main outputs 1-4, selectable as monaural or stereo
• Level Meters: 2, 8-segment LED

Headphone Output

• Type: stereo (dual-channel)
• Compatibility: intended for connection to stereo headphones with nominal impedance of 100 ohms or greater
• Maximum Output Voltage: 4.9 volts RMS, 1 kHz, 150 ohm load
• Frequency Response: +0/・.4 dB, 20 Hz to 20 kHz
i
• Distortion (THD+N): 0.005%
• Dynamic Range: >100 dB

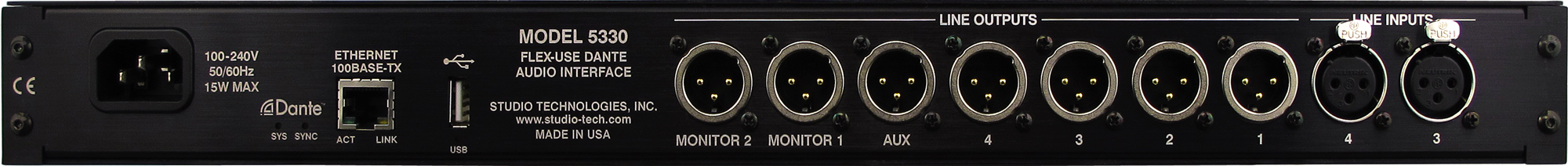

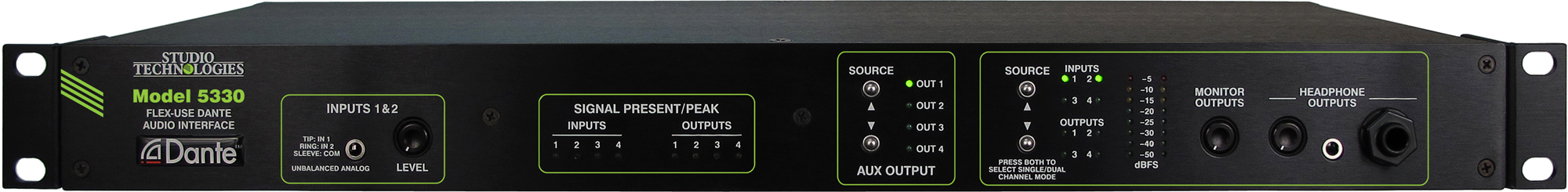

Connectors

• Inputs 1 and 2: 3-conductor 3.5 mm jack
• Inputs 3 and 4: 3-pin female XLR
• Main, Auxiliary, and Monitor Outputs: 3-pin male XLR
• Headphone Output: 3-conductor 3.5 mm jack and 3-conductor ・inch jack
>
• Ethernet: RJ45 receptacle
• USB: type A receptacle (used only for application firmware updates)
• AC Mains: 3-blade, IEC 320 C14-compatible (mates with IEC 320 C13)

Power Source

• AC Mains: 100 to 240 volts, +10/・5%, 50/60 Hz, 15 watt maximum
i

Dimensions ・Overall

p

• 19.0 inches wide (48.3 cm)
• 1.72 inches high (4.4 cm)
• 7.8 inches deep (19.8 cm); 8.2 inches (20.8 cm) overall

Mounting

• one space (1U) in a standard 19-inch rack

Weight

• 3.3 pounds (1.5kg)
