Versions Available

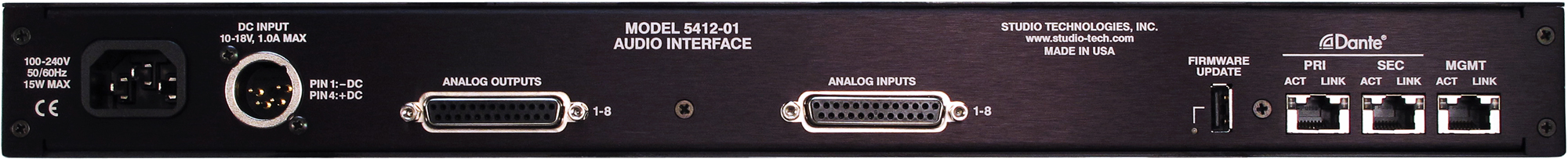

• Model 5412-01: 8 line-level analog inputs and 8 line-level analog outputs

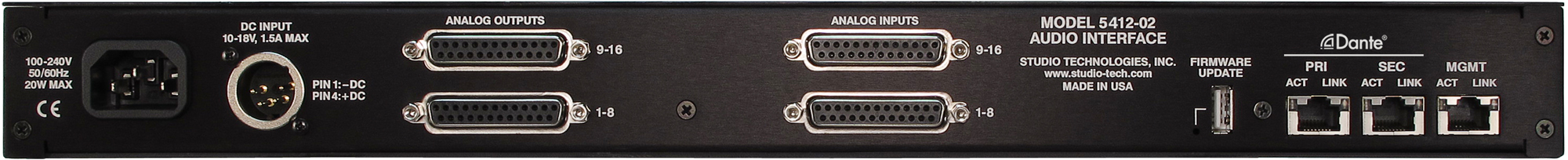

• Model 5412-02: 16 line-level analog inputs and 16 line-level analog outputs

Network Audio Technology

• Type: Dante audio-over-Ethernet
• AES67-2018 Support: yes, selectable on/off
• Dante Domain Manager (DDM) Support: yes
• Ethernet Interface Configuration: switched or redundant
• Sampling Rates: 44.1, 48, and 96 kHz, selectable
• Bit Depth: up to 24
• Number of Transmitter (Output) Channels: 8 (Model 5412-01) or 16 (Model 5412-02)
• Number of Receiver (Input) Channels: 8 (Model 5412-01) or 16 (Model 5412-02)
• Dante Audio Flows: 32 transmitter, 32 receiver

Network Interfaces

• Qty: 3; Dante primary, Dante secondary, and management
• Type: 1000BASE-T (Gigabit Ethernet ("GigE")) per IEEE 802.3ab (100 Mb/s also supported but not recommended for optimal performance)
• NIC Status LEDs: one link and one activity for each Ethernet interface
• Remote Configuration Capability: web pages provided by internal web server and/or Studio Technologies STcontroller software application

Analog Inputs

• Type: electronically balanced, capacitor coupled, intended for connection to balanced (differential) or unbalanced signal sources
• Impedance: 20 k ohms
• Nominal Level: +4 dBu, reference ・0 dBFS, adjustable ±20 dB in 1-dB steps
i
• Maximum Level: +24 dBu, results in digital output level of 0 dBFS
• Dynamic Range: 120 dB, A-weighted
• Distortion (THD+N): <0.0005% (・05 dB), ref 1 kHz, +23 dBu input/・ dBFS output
/l
• Frequency Response: ±0.2 dB, 14 Hz to 20 kHz

Analog Outputs

• Type: electronically balanced, capacitor coupled, intended to drive balanced or unbalanced loads of 2 k ohms or greater
• Source Impedance: 200 ohms
• Nominal Level: +4 dBu, reference ・0 dBFS, adjustable ±20 dB in 1-dB steps
i
• Maximum Level: +24 dBu
• Dynamic Range: >119 dB, A-weighted
• Distortion (THD+N): <0.001% (・01 dB), reference 1 kHz, ・ dBFS input/+23 dBu output
/l
• Frequency Response: ±0.1 dB, 6 Hz to 20 kHz

Front-Panel Display

• backlit LCD

Software Updating

• USB flash drive supports updating of application and FPGA firmware (embedded software); Dante interface updated via Ethernet interface

Power Sources

• AC Mains: 100 to 240 V, 50/60 Hz, 20 W maximum
• DC: 10 to 18 V, 1.5 A maximum

Connectors

• Analog Inputs and Analog Outputs: 25-pin female D-subminiature (DB-25F), AES59-2012-compliant
• Ethernet: RJ45
• USB: type A receptacle (used only for firmware updates)
• DC Input: 4-pin male XLR (pin 1 negative, pin 4 positive)
• AC Mains Input: 3-blade, IEC 320 C14-compatible (mates with IEC 320 C13)

Environmental

• Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
• Storage Temperature: ・0 to 70 degrees C (・0 to 158 degrees F)
/l
• Humidity: 5 to 95%, non-condensing
• Altitude: not characterized

Dimensions ・Overall

p

• 19.0 inches wide (48.3 cm)
• 1.72 inches high (4.4 cm)
• 7.8 inches deep (19.8 cm); 8.3 inches (21.1 cm) overall

Mounting

• one space (1U) in a standard 19-inch rack

Weight

• 3.2 pounds (1.5 kg)
